Understanding the Basics of PCB Hacking
Before diving into the tools and equipment needed, it’s important to understand some PCB hacking fundamentals:
What is a PCB?
A printed circuit board (PCB) is the foundation that supports and connects electronic components using conductive tracks, pads and other features etched from one or more sheet layers of copper laminated onto and/or between sheet layers of a non-conductive substrate.
Why Hack PCBs?

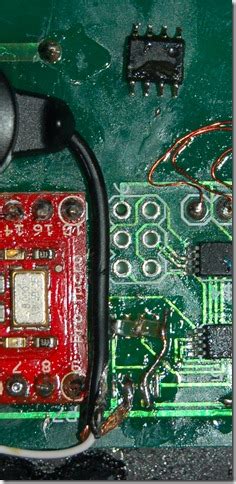

People hack and modify PCBs for a variety of reasons:
– To repair broken electronics by diagnosing and replacing faulty components
– To customize devices with new features, better performance, different connectors, etc.
– To learn about electronic circuits, PCB Design, and manufacturing processes
– As a creative outlet to make art, wearables, and unique projects
– To extract and reverse engineer proprietary designs for research or Product Development
Is PCB Hacking Legal?
In general, it is legal to hack and modify PCBs that you own. However, there are some important exceptions and considerations:
– Hacking devices you don’t own or have explicit permission to modify is illegal
– Extracting and copying proprietary PCB designs may violate IP laws in some cases
– Modified devices likely void warranties and may be unsafe if done incorrectly
– Certain modifications, like removing FCC certifications, can be illegal
– Use common sense, obtain permission when needed, and hack responsibly
Now that you understand the basics, let’s look at the key tools you’ll need to start hacking PCBs at home!
Essential Tools for PCB Hacking
To comfortably and effectively work on PCBs, you’ll need a well-equipped electronics workbench with the following essential tools:
Soldering Station
A good quality soldering station is the most important tool for PCB hacking. Soldering is how you’ll attach and detach components from circuit boards. Look for an adjustable temperature soldering station with interchangeable tips. Some top options include:
| Soldering Station | Price | Features |
|---|---|---|
| Hakko FX888D | $100 | Adjustable temp, digital display, tons of tip options |
| Weller WE1010 | $140 | 70W power, intuitive UI, password protected settings |
| X-Tronic 3020-XTS | $60 | Affordable, heats up fast, 10 min auto shut-off |
In addition to the soldering iron, you’ll need solder (leaded is easier than lead-free for beginners), flux, and various soldering accessories like a brass sponge tip cleaner, de-soldering wick, and a fume extractor.
Digital Multimeter
A digital multimeter (DMM) is an invaluable tool for measuring voltage, current, resistance, continuity, and other electronic properties. You’ll use a DMM constantly to analyze and debug circuits. Popular beginner options include:
| Multimeter | Price | Features |
|---|---|---|
| Fluke 101 | $65 | Compact, CAT III 600V rated, auto-ranging |
| Amprobe AM-510 | $40 | Affordable, true RMS for AC accuracy |
| AstroAI DM130B | $25 | Ultra portable, backlit display, holds data |
Look for a DMM with good build quality, clear display, ability to measure capacitance, frequency, and transistor gain, and an auto-ranging feature.
Oscilloscope
For hacking and debugging high-speed digital and analog circuits, an oscilloscope is a must-have tool. Scopes allow you to visualize voltage signals over time, which is essential for tasks like reverse engineering protocols, finding noise issues, and measuring signal integrity. Scope options range from low-cost handheld models to advanced benchtop devices:
| Oscilloscope | Price | Features |
|---|---|---|
| Rigol DS1054Z | $400 | 50 MHz, 4 channels, 1 GSa/sec sampling |
| Siglent SDS1202X-E | $379 | 200 MHz, 2 channels, 1 GSa/sec sampling |
| Hantek DSO5102P | $225 | 100 MHz, 2 channels, FFT function, portable |
Key scope specs to consider are bandwidth (measured in MHz), number of channels, maximum sample rate, memory depth, and triggering options. For PCB hacking, a 50-200MHz scope with 2-4 channels is usually sufficient.
Microscope
Many modern PCBs have tiny surface mount components that are challenging to inspect and work on with the naked eye. A good digital microscope makes PCB hacking much easier. USB microscopes are affordable and convenient since they display on your computer screen. Some popular options include:
| Microscope | Price | Features |
|---|---|---|
| Plugable USB 2.0 | $50 | 250X magnification, integrated LEDs |
| Celestron 5 MP | $140 | Up to 500X magnification, adjustable LED ring |
| Andonstar ADSM302 | $280 | 10~100X dual-lens scope, HDMI/USB outputs |
Look for a USB scope with at least 200X magnification, adjustable LED lighting, and a stable stand. Pricier trinocular microscopes allow you to view through eyepieces and a camera simultaneously.
Power Supply
When hacking on PCBs, you’ll often need to provide steady, adjustable DC voltages. While you can use batteries in a pinch, a good benchtop power supply makes life much easier. Look for models with multiple independent outputs, a wide voltage adjustment range (e.g. 0-30V), over-current protection, and a backlit display, like:
| Power Supply | Price | Features |
|---|---|---|
| Tekpower TP3005T | $100 | 0-30V/0-5A, adjustable current limiting |
| Rigol DP832 | $560 | 3 channels, 195W total output, LED display |
| Korad KD3005P | $90 | 0-30V/0-5A, easy front panel programming |
Additional Tools & Accessories
With the essential tools covered, here are some additional items that will make your PCB hacking endeavors more productive and enjoyable:
- Flush cutters for trimming wire leads
- Tweezers for handling small components
- Bench vise or ‘helping hands’ for holding PCBs
- Multimeter probes and test lead kit
- Soldering iron tip cleaner and tinner
- Brass sponge for cleaning tips
- Solder sucker and solder wick for desoldering
- Flux pen and no-clean flux
- Isopropyl alcohol for flux removal
- ESD-safe cutting mat for your workbench
- Precision screwdriver set
- Magnifying headset or desk lamp
- Breadboard and jumper wires for prototyping
- Bench power supply
- Logic analyzer for digital circuits
- Hot air rework station for SMD soldering
- Solder paste stencils for fine-pitch components
- 3D printer for enclosures and mechanical parts
You don’t need everything at once, but slowly building out your workbench with these tools will make PCB hacking and repair easier over time.
PCB Hacking Tips & Techniques
Armed with the right tools, you’re ready to start hacking! Here are some tips and techniques to keep in mind:
Use Flux
Flux is a chemical that helps solder flow and wet to pads/pins more easily. Always use flux when soldering – it makes a huge difference!
Apply the Right Amount of Heat
Soldering requires a balance – too little heat and solder won’t flow properly. Too much heat can damage components. Use an adjustable iron and apply just enough heat to melt solder within a few seconds.
Check Datasheets
Before hacking on an unfamiliar PCB, always check the datasheets for its key components to identify proper voltage levels, pinouts, Communication Protocols, and more.
Document Your Progress
Take high-res photos of a PCB before you start hacking on it to capture reference designators, solder jumpers, switch positions, etc. Snap more pics and take notes as you go to record any mods.
Get an ESD Mat
Electrostatic discharge (ESD) can easily damage sensitive electronics. An ESD-safe rubber mat provides a safe surface for placing PCBs and parts.
Work Under Magnification
Investing in a good USB microscope makes inspecting and soldering tiny PCBs so much easier and more precise. Magnification is a game-changer!
Know Your Limits
Some PCB hacks may be beyond your current skill level – and that’s okay! Don’t be afraid to start simple, learn constantly, and challenge yourself to take on harder mods and repairs over time.
Frequently Asked Questions (FAQ)
What are some good beginner PCB hacking projects?
If you’re new to PCB hacking, start with something simple like adding filtering caps to improve audio output on old game systems, making battery mods on handheld game consoles, or fixing broken consoles/old electronics from eBay.
How do I identify components on a PCB?
Most PCBs have reference designators silkscreened to identify components (e.g. R1 for resistor 1, U1 for integrated circuit 1). You can look up part numbers online or use a visual reference like the SMD code book to ID parts.
Is it safe to desolder and reuse components?
Yes, many components can be safely desoldered and salvaged from old PCBs to reuse in your projects, especially passives like resistors and capacitors. Just be careful not to overheat parts, and inspect them for damage before reusing.
How do I get better at soldering?
Practice, practice, practice! Start by soldering wires, resistors, and header pins. Work your way up to smaller surface mount parts. Use flux, dial in your iron temp, and don’t be afraid to reflow joints. With patience and experience, your skills will improve.
What PCB design software should I learn?
To design your own PCBs, popular beginner-friendly software options include Autodesk Eagle, EasyEDA, and KiCad. For more advanced boards, check out Altium Designer or Cadence OrCAD. Most CAD tools have extensive tutorials and forums to help you learn.
Conclusion
Hacking and modifying PCBs is an incredibly rewarding hobby that lies at the intersection of electronics, engineering, and DIY. With the right tools, techniques, and knowledge, you’ll be well-equipped to tackle a wide range of PCB projects at your home workbench.
Remember – start simple, read datasheets, use flux, and don’t be afraid to make mistakes! As your skills grow, you’ll be able to take on increasingly complex hacks, design your own circuit boards, and even collaborate with the vibrant maker and DIY community.
So fire up that soldering iron, grab your DMM, and start hacking! With dedication and an insatiable curiosity, you’ll soon unlock the full potential of PCB hacking as the ultimate electronics hobby.
