Current Limiting Resistor: Protective Resistor for Regulating Current

What is a Current-limiting resistor?

A current-limiting resistor, also known as a protective resistor, is a crucial component in electronic circuits that helps regulate the amount of current flowing through a specific part of the circuit. Its primary purpose is to prevent excessive current from damaging sensitive components, such as LEDs, transistors, and integrated circuits. By limiting the current, the resistor ensures that the components operate within their safe operating range, thereby extending their lifespan and maintaining the overall stability of the circuit.

How Does a Current-Limiting Resistor Work?

A current-limiting resistor works by following Ohm’s law, which states that the voltage across a resistor is directly proportional to the current flowing through it. The equation for Ohm’s law is:

V = I × R

Where:
– V is the voltage across the resistor (in volts)
– I is the current flowing through the resistor (in amperes)
– R is the resistance of the resistor (in ohms)

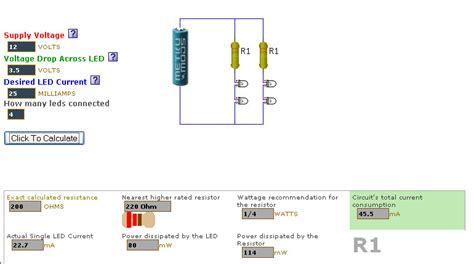

By selecting an appropriate resistance value, you can control the current flowing through the circuit. For example, if you have a 5V power supply and you want to limit the current to 20mA for an LED, you can calculate the required resistance using the following formula:

R = (V_supply – V_LED) / I_LED

Where:
– R is the required resistance (in ohms)
– V_supply is the voltage of the power supply (in volts)
– V_LED is the forward voltage drop of the LED (in volts)
– I_LED is the desired current for the LED (in amperes)

Assuming the LED has a forward voltage drop of 2V, the calculation would be:

R = (5V – 2V) / 0.02A = 150 ohms

In this case, a 150-ohm resistor would be used to limit the current to 20mA.

Applications of Current-Limiting Resistors

Current-limiting resistors find applications in various electronic circuits, including:

1. LED Circuits

LEDs are sensitive to overcurrent and can easily be damaged if the current is not limited. By placing a current-limiting resistor in series with the LED, you can ensure that the current remains within the LED’s safe operating range. The resistor value is chosen based on the LED’s forward voltage drop and the desired current.

2. Transistor Circuits

In transistor circuits, current-limiting resistors are often used to control the base current of bipolar junction transistors (BJTs) or the gate current of field-effect transistors (FETs). By limiting the current, the resistor prevents the transistor from drawing excessive current, which could lead to overheating and damage.

3. Voltage Divider Circuits

Current-limiting resistors are also used in voltage divider circuits to create a reference voltage or to reduce the voltage applied to a specific component. In this case, the resistor is chosen based on the desired voltage drop and the maximum allowable current through the resistor.

4. Protection Circuits

In some cases, current-limiting resistors are used as protection devices to prevent damage to sensitive components in the event of a short circuit or overload condition. By limiting the current, the resistor acts as a fuse, preventing excessive current from flowing through the circuit.

Selecting the Right Current-Limiting Resistor

When selecting a current-limiting resistor, there are several factors to consider:

1. Resistance Value

The resistance value is determined by the desired current limit and the voltage drop across the resistor. As mentioned earlier, you can use Ohm’s law to calculate the required resistance.

2. Power Rating

The power rating of the resistor must be sufficient to handle the power dissipation caused by the current flowing through it. The power dissipation can be calculated using the following equation:

P = I^2 × R

Where:
– P is the power dissipation (in watts)
– I is the current flowing through the resistor (in amperes)
– R is the resistance of the resistor (in ohms)

For example, if a 150-ohm resistor is used to limit the current to 20mA, the power dissipation would be:

P = (0.02A)^2 × 150 ohms = 0.06 watts

In this case, a resistor with a power rating of at least 0.06 watts should be chosen. It is common practice to select a resistor with a power rating higher than the calculated value to provide a safety margin.

3. Tolerance

The tolerance of the resistor indicates how much its actual resistance value may deviate from its nominal value. A common tolerance for current-limiting resistors is ±5%, meaning that the actual resistance can be within ±5% of the specified value. In some cases, tighter tolerances (e.g., ±1%) may be required for more precise current control.

4. Temperature Coefficient

The temperature coefficient of a resistor describes how much its resistance changes with temperature. In applications where the resistor may be exposed to significant temperature variations, it is essential to choose a resistor with a low temperature coefficient to minimize changes in current due to temperature fluctuations.

Implementing Current-Limiting Resistors in Circuit Design

When incorporating current-limiting resistors into your circuit design, consider the following best practices:

1. Place the current-limiting resistor in series with the component you wish to protect. This ensures that all the current flowing through the component also flows through the resistor.

2. Use the appropriate resistor value and power rating based on your calculations. Overestimating the power rating provides a safety margin, while underestimating it may lead to resistor failure.

3. Consider the voltage drop across the resistor when selecting component values. The voltage drop across the resistor will reduce the voltage available to the rest of the circuit, which may impact the performance of other components.

4. In some cases, it may be necessary to use multiple current-limiting resistors in parallel to distribute the power dissipation and prevent overheating of a single resistor.

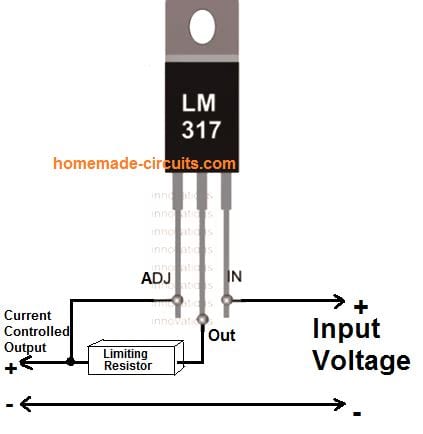

5. If your circuit requires precise current control, consider using a constant current source instead of a current-limiting resistor. Constant current sources provide a more stable current and are less affected by changes in voltage or temperature.

FAQs

1. Can I use a current-limiting resistor with any type of LED?

Yes, current-limiting resistors can be used with any type of LED, including standard LEDs, high-power LEDs, and SMD LEDs. The resistor value should be calculated based on the specific LED’s forward voltage drop and the desired current.

2. What happens if I don’t use a current-limiting resistor with an LED?

If you connect an LED directly to a power supply without a current-limiting resistor, the LED will draw excessive current, which can cause it to burn out or fail prematurely. In some cases, the LED may even explode due to the high current.

3. Can I use a variable resistor as a current-limiting resistor?

Yes, you can use a variable resistor, such as a potentiometer or a rheostat, as a current-limiting resistor. This allows you to adjust the current flowing through the circuit by changing the resistance value. However, be aware that variable resistors may introduce additional noise or instability into the circuit compared to fixed-value resistors.

4. How do I choose the right power rating for my current-limiting resistor?

To choose the right power rating for your current-limiting resistor, calculate the power dissipation using the equation P = I^2 × R, where P is the power dissipation, I is the current flowing through the resistor, and R is the resistance. Choose a resistor with a power rating higher than the calculated value to provide a safety margin.

5. Can I use a current-limiting resistor to protect other components besides LEDs?

Yes, current-limiting resistors can be used to protect various components, including transistors, integrated circuits, and other sensitive devices. The resistor value should be chosen based on the specific component’s maximum current rating and the desired current limit.

Conclusion

Current-limiting resistors play a vital role in protecting sensitive components and ensuring the stability of electronic circuits. By understanding how these resistors work and how to select the appropriate values, you can design circuits that are both safe and reliable. Whether you are working with LEDs, transistors, or other components, incorporating current-limiting resistors into your designs is an essential practice for any electronics engineer or hobbyist.

By following best practices and considering factors such as resistance value, power rating, tolerance, and temperature coefficient, you can effectively implement current-limiting resistors in your projects. Remember to always calculate the required values based on your specific application and provide a safety margin to account for variations in component performance.

As you continue to explore the world of electronics, keep in mind the importance of current-limiting resistors and their role in protecting and regulating the flow of current through your circuits. With this knowledge, you’ll be well-equipped to design and build circuits that are both functional and robust.

Component	Voltage Drop (V)	Current (mA)	Resistance (Ω)	Power Dissipation (mW)
Standard LED	2.0	20	150	60
High-Power LED	3.2	350	5.1	1,120
SMD LED	3.0	20	100	40
BJT (Base Current)	0.7	1	4,300	0.7
FET (Gate Current)	2.5	0.1	25,000	0.25
