What is a Bluetooth Circuit Board?

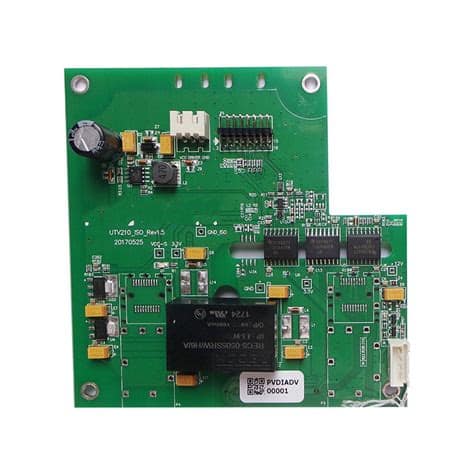

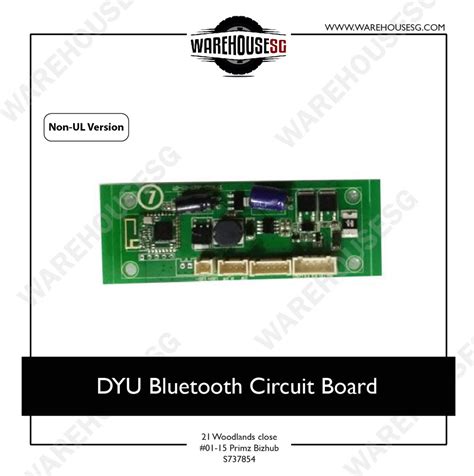

A Bluetooth circuit board, also known as a Bluetooth PCB (printed circuit board), is a specialized type of circuit board that enables wireless communication using the Bluetooth protocol. Bluetooth is a widely used short-range wireless technology that allows devices to exchange data over a distance of about 10 meters.
Bluetooth circuit boards contain the necessary components and circuitry to implement Bluetooth functionality in various devices such as smartphones, computers, headphones, speakers, wearables, IoT devices, and more. These boards integrate a Bluetooth module or chip along with other electronic components to enable wireless data transfer and control.
The Bluetooth protocol operates in the 2.4 GHz ISM (Industrial, Scientific, and Medical) frequency band and uses frequency hopping spread spectrum (FHSS) to avoid interference with other devices operating in the same frequency range. Bluetooth supports data rates of up to 2 Mbps for Bluetooth Classic and up to 2 Mbps for Bluetooth Low Energy (BLE).
Key Components of a High-Quality Bluetooth Circuit Board
To ensure reliable and efficient Bluetooth communication, a high-quality Bluetooth circuit board must incorporate several key components:
1. Bluetooth Module or Chip
The heart of any Bluetooth circuit board is the Bluetooth module or chip. This component contains the Bluetooth radio, baseband controller, and host controller interface (HCI). Some popular Bluetooth modules include:
- Nordic Semiconductor nRF52 Series
- Texas Instruments CC2540/CC2541
- Cypress CYW20719
- Silicon Labs BGM113
The choice of Bluetooth module depends on factors such as supported Bluetooth version, data rate, power consumption, and cost.
2. Antenna
The antenna is a critical component for wireless communication. Bluetooth circuit boards typically use either a chip antenna or a trace antenna. Chip antennas are small, surface-mount components that offer good performance and ease of integration. Trace antennas are printed directly onto the PCB and offer lower cost but may require more design effort to achieve optimal performance.
3. Passive Components
Bluetooth circuit boards also include various passive components such as resistors, capacitors, and inductors. These components are used for filtering, Impedance Matching, and signal conditioning. High-quality passive components with tight tolerances are essential for reliable Bluetooth performance.
4. Power Management
Efficient power management is crucial for battery-powered Bluetooth devices. Bluetooth circuit boards often incorporate low-dropout (LDO) regulators, DC-DC converters, and power management ICs (PMICs) to provide stable and efficient power to the Bluetooth module and other components.
5. Shielding and EMI Protection
Bluetooth operates in the crowded 2.4 GHz frequency band, which is prone to electromagnetic interference (EMI) from other devices. To minimize EMI and ensure reliable communication, high-quality Bluetooth circuit boards incorporate shielding and filtering components such as metal shields, Ferrite beads, and EMI filters.
Designing a Bluetooth Circuit Board
Designing a high-quality Bluetooth circuit board requires careful consideration of several factors:
1. Schematic Design
The first step in designing a Bluetooth circuit board is creating a schematic diagram that shows the interconnections between the various components. The schematic should be designed according to the Bluetooth module’s datasheet and application notes, as well as best practices for RF design.
2. PCB Layout
Once the schematic is complete, the next step is to create a PCB layout that implements the schematic design. The PCB layout is critical for achieving optimal Bluetooth performance and minimizing EMI. Key considerations for PCB layout include:
- Proper grounding and power planes
- Minimizing trace lengths and impedance mismatches
- Proper placement of decoupling capacitors
- Adequate spacing between RF and digital components
- Proper routing of high-speed signals
3. Antenna Design and Placement
The antenna is a critical component of any wireless system, and its design and placement can significantly impact Bluetooth performance. Factors to consider when designing and placing the antenna include:
- Antenna type (chip or trace)
- Antenna size and shape
- Antenna placement relative to other components
- Antenna Matching network design
4. Simulation and Verification
Before manufacturing the Bluetooth circuit board, it’s important to simulate and verify the design using electronic design automation (EDA) tools. Simulation can help identify potential issues with signal integrity, Power Integrity, and EMI, allowing designers to make necessary adjustments before committing to manufacturing.
Manufacturing and Assembly of Bluetooth PCBs
Once the Bluetooth circuit board design is complete and verified, the next step is to manufacture and assemble the PCB. Key considerations for manufacturing and assembly include:
1. PCB Fabrication
The PCB fabrication process involves creating the physical PCB substrate and copper traces according to the PCB layout. Key factors to consider when selecting a PCB fabricator include:
- PCB material (FR-4, Rogers, etc.)
- Copper weight and trace width/spacing
- Number of layers
- Surface finish (HASL, ENIG, OSP, etc.)
- Soldermask and silkscreen options
2. Component Selection and Sourcing
Selecting high-quality components is essential for ensuring reliable Bluetooth performance. When sourcing components, consider factors such as:
- Component tolerance and quality
- Availability and lead time
- Cost and minimum order quantity (MOQ)
3. PCB Assembly
PCB assembly involves soldering the components onto the PCB substrate according to the PCB layout. Key considerations for PCB assembly include:
- Assembly method (surface mount or through-hole)
- Solder paste selection and application
- Reflow or wave soldering process
- Inspection and testing
Testing and Quality Control
To ensure that the Bluetooth circuit board meets performance and reliability requirements, thorough testing and quality control measures are necessary. Key testing and quality control steps include:
1. Functional Testing
Functional testing involves verifying that the Bluetooth circuit board operates as intended and meets all functional requirements. This may include testing Bluetooth connectivity, data transfer, range, and power consumption.
2. RF Testing
RF testing involves measuring the Bluetooth circuit board’s RF performance, including parameters such as output power, sensitivity, and antenna gain. Specialized RF test equipment such as spectrum analyzers and power meters are used for this purpose.
3. EMI Testing
EMI testing involves measuring the Bluetooth circuit board’s electromagnetic emissions and susceptibility to ensure compliance with regulatory standards such as FCC and CE. EMI testing is typically performed in an anechoic chamber or EMC test facility.
4. Environmental Testing
Environmental testing involves subjecting the Bluetooth circuit board to various environmental conditions such as temperature, humidity, and vibration to ensure reliable operation in the intended application environment.
5. Reliability Testing
Reliability testing involves subjecting the Bluetooth circuit board to accelerated life testing (ALT) to identify potential long-term reliability issues. This may include testing the board’s resistance to thermal cycling, mechanical shock, and other stresses.
Applications and Use Cases
Bluetooth circuit boards are used in a wide range of applications and devices, including:
- Smartphones and tablets
- Laptops and computers
- Headphones and speakers
- Wearables (smartwatches, fitness trackers, etc.)
- IoT devices (sensors, actuators, etc.)
- Automotive infotainment systems
- Medical devices
- Industrial automation and control systems
The specific requirements for a Bluetooth circuit board will depend on the intended application and use case. For example, a Bluetooth circuit board for a medical device may require higher reliability and longer range than one for a consumer electronic device.
Choosing the Right Bluetooth Circuit Board
When selecting a Bluetooth circuit board for a particular application, several factors should be considered:
1. Bluetooth Version and Profile Support
Different Bluetooth versions (e.g., Bluetooth 4.0, 5.0) and profiles (e.g., A2DP, HID, SPP) have different capabilities and requirements. Choose a Bluetooth circuit board that supports the version and profiles required for your application.
2. Range and Power Consumption
Consider the required range and power consumption for your application. Bluetooth Low Energy (BLE) is designed for low power consumption and short-range communication, while Bluetooth Classic offers longer range but higher power consumption.
3. Compatibility and Interoperability
Ensure that the Bluetooth circuit board is compatible with other devices and systems in your application. Consider interoperability testing to verify seamless integration.
4. Certifications and Compliance
Bluetooth devices must comply with various regulatory standards and certifications, such as FCC, CE, and Bluetooth SIG certification. Choose a Bluetooth circuit board that has the necessary certifications for your target market.
5. Cost and Availability
Consider the cost and availability of the Bluetooth circuit board and its components. Evaluate trade-offs between performance, features, and cost to find the optimal solution for your application and budget.
FAQ
1. What is the difference between Bluetooth Classic and Bluetooth Low Energy (BLE)?
Bluetooth Classic is designed for continuous data streaming and has a longer range but higher power consumption compared to BLE. BLE is designed for low power consumption and short-range communication, making it ideal for battery-powered devices and IoT applications.
2. Can a Bluetooth circuit board be used for both Bluetooth Classic and BLE?
Some Bluetooth modules and chips support both Bluetooth Classic and BLE, allowing a single circuit board to be used for both types of communication. However, the specific implementation and software stack will differ between the two modes.
3. What is the maximum range of a Bluetooth circuit board?
The maximum range of a Bluetooth circuit board depends on factors such as the Bluetooth version, antenna design, and environment. Bluetooth Classic can typically achieve ranges of up to 100 meters, while BLE is limited to around 10-30 meters.
4. How do I ensure my Bluetooth circuit board is compliant with regulatory standards?
To ensure compliance with regulatory standards, follow best practices for PCB design and layout, use components with appropriate certifications, and perform thorough testing and qualification. Consulting with a regulatory compliance expert can also help ensure that your Bluetooth circuit board meets all necessary requirements.
5. Can I design a Bluetooth circuit board myself, or should I use a pre-designed module?
Designing a Bluetooth circuit board from scratch requires significant expertise in RF design, PCB layout, and antenna design. For most applications, using a pre-designed Bluetooth module or reference design can simplify the development process and reduce risk. However, custom designs may be necessary for specialized applications or unique form factors.
