Supercapacitor Charging Circuit: The Ultimate Guide

Introduction to Supercapacitor Charging

Supercapacitors, also known as ultracapacitors or double-layer capacitors, are high-capacity energy storage devices that bridge the gap between traditional capacitors and rechargeable batteries. They offer several advantages over batteries, such as rapid charging and discharging, long life cycles, and high power density. To effectively utilize supercapacitors in various applications, it is crucial to understand the proper charging techniques and circuit design. This comprehensive guide will dive deep into the world of supercapacitor charging circuits, covering the fundamentals, design considerations, and practical implementations.

Understanding Supercapacitors

What are Supercapacitors?

Supercapacitors are electrochemical devices that store energy in an electric field between two electrodes separated by an electrolyte. They consist of highly porous electrode materials with a large surface area, allowing them to store a significant amount of charge. Unlike traditional capacitors, supercapacitors have a much higher capacitance, typically ranging from a few farads to several thousand farads.

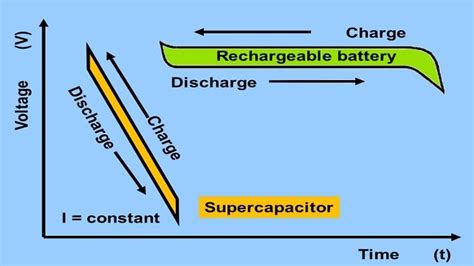

Supercapacitor Characteristics

Supercapacitors exhibit several unique characteristics that distinguish them from other energy storage devices:

1. High Power Density: Supercapacitors can deliver and absorb high currents rapidly, making them suitable for applications requiring high power bursts.
2. Fast Charging and Discharging: Due to their low internal resistance, supercapacitors can be charged and discharged quickly, often within seconds.
3. Long Cycle Life: Supercapacitors can undergo hundreds of thousands of charge-discharge cycles without significant degradation in performance.
4. Wide Operating Temperature Range: Supercapacitors can operate efficiently in a wide temperature range, typically from -40°C to +65°C.
5. Low Voltage: Supercapacitors have a relatively low operating voltage, typically ranging from 2.5V to 2.7V per cell.

Supercapacitor Applications

Supercapacitors find applications in various fields where high power density, rapid charging, and long cycle life are crucial:

1. Automotive: Supercapacitors are used in regenerative braking systems, start-stop systems, and hybrid electric vehicles.
2. Renewable Energy: Supercapacitors can smooth out power fluctuations in solar and wind energy systems.
3. Consumer Electronics: Supercapacitors are used in portable devices, such as smartphones, laptops, and wearables, to provide instant power and extend battery life.
4. Industrial: Supercapacitors are employed in uninterruptible power supplies (UPS), backup power systems, and power quality improvement.

Supercapacitor Charging Techniques

Charging supercapacitors efficiently and safely is crucial to maximize their performance and longevity. Several charging techniques are commonly used, each with its own advantages and considerations.

Constant Current Charging

Constant current (CC) charging is the simplest and most straightforward method for charging supercapacitors. In this technique, a constant current is applied to the supercapacitor until it reaches its rated voltage. The charging time depends on the capacitance and the charging current.

Advantages:
– Simple implementation
– Precise control over charging current
– Predictable charging time

Considerations:
– Requires current limiting to prevent overcharging
– May not fully utilize the supercapacitor’s capacity

Constant Voltage Charging

Constant voltage (CV) charging involves applying a fixed voltage across the supercapacitor terminals until it reaches the desired voltage level. This method is similar to the charging technique used for lithium-ion batteries.

Advantages:
– Prevents overcharging
– Allows for maximum utilization of the supercapacitor’s capacity
– Suitable for parallel charging of multiple supercapacitors

Considerations:
– Requires voltage regulation circuitry
– Charging current decreases as the supercapacitor voltage approaches the charging voltage
– Slower charging compared to constant current method

Constant Power Charging

Constant power (CP) charging maintains a constant power level during the charging process. The charging current and voltage are adjusted to maintain a constant power input to the supercapacitor.

Advantages:
– Efficient charging by maximizing power transfer
– Suitable for applications with limited power availability
– Allows for faster charging compared to constant voltage method

Considerations:
– Requires complex control circuitry
– Careful monitoring of supercapacitor voltage is necessary to prevent overcharging

Pulse Charging

Pulse charging involves applying short, high-current pulses to the supercapacitor, followed by rest periods. This technique can improve charging efficiency and reduce charging time compared to constant current or constant voltage methods.

Advantages:
– Faster charging compared to constant current and constant voltage methods
– Improved charging efficiency
– Reduced heat generation during charging

Considerations:
– Requires specialized pulse charging circuitry
– Careful selection of pulse parameters (amplitude, duration, duty cycle) is necessary
– May cause increased stress on the supercapacitor if not properly controlled

Supercapacitor Charging Circuit Design

Designing an efficient and reliable supercapacitor charging circuit involves several key considerations. The following sections will guide you through the essential aspects of supercapacitor charging circuit design.

Voltage and Current Limiting

To ensure safe and efficient charging, it is crucial to incorporate voltage and current limiting mechanisms in the charging circuit. Voltage limiting prevents overcharging, which can damage the supercapacitor and reduce its lifespan. Current limiting protects the supercapacitor from excessive charging currents that can cause overheating and degradation.

Voltage limiting can be achieved using a voltage regulator or a comparator-based circuit that monitors the supercapacitor voltage and cuts off the charging current when the desired voltage level is reached. Current limiting can be implemented using a Current-limiting resistor or a dedicated current-limiting IC.

Charge Balancing

When multiple supercapacitors are connected in series to achieve higher voltage ratings, charge balancing becomes essential. Due to manufacturing tolerances, individual supercapacitors may have slightly different capacitances, leading to uneven voltage distribution during charging and discharging.

Charge balancing circuits ensure that the voltage across each supercapacitor remains within a safe range, preventing overcharging or undercharging of individual cells. Passive balancing techniques use resistors connected in parallel with each supercapacitor to equalize the voltages. Active balancing methods employ switchable resistors or dedicated balancing ICs to actively redistribute the charge among the supercapacitors.

Protection Circuitry

In addition to voltage and current limiting, incorporating protection circuitry is crucial to safeguard the supercapacitor and the charging circuit from abnormal conditions.

1. Overvoltage Protection: Prevents the supercapacitor from being charged beyond its maximum rated voltage, which can cause irreversible damage.
2. Undervoltage Protection: Prevents the supercapacitor from being discharged below its minimum voltage threshold, which can degrade its performance and lifespan.
3. Short-Circuit Protection: Protects the charging circuit and the supercapacitor from short-circuit conditions that can cause excessive current flow and damage.
4. Reverse Polarity Protection: Prevents damage to the supercapacitor and the charging circuit if the supercapacitor is connected with the wrong polarity.

Charging Indicators and Monitoring

Incorporating charging indicators and monitoring features in the supercapacitor charging circuit enhances user experience and provides valuable information about the charging process.

1. Charging Status Indicators: LEDs or other visual indicators can be used to indicate the charging status, such as charging in progress, charging complete, or fault conditions.
2. Voltage Monitoring: Measuring and displaying the supercapacitor voltage allows users to monitor the charging progress and ensure that the desired voltage level is reached.
3. Current Monitoring: Measuring the charging current provides insights into the charging rate and helps detect any abnormalities in the charging process.
4. Temperature Monitoring: Monitoring the temperature of the supercapacitor during charging can help prevent overheating and ensure safe operation.

Practical Supercapacitor Charging Circuits

Now that we have covered the fundamentals and design considerations of supercapacitor charging circuits, let’s explore some practical implementations.

Basic Constant Current Charging Circuit

A basic constant current charging circuit can be implemented using a current-limiting resistor and a voltage regulator. The current-limiting resistor sets the charging current, while the voltage regulator maintains a constant voltage across the supercapacitor.

           +-------+
           |       |
           |  VIN  |
           |       |
           +---+---+
               |
               |
              +-+
              | |
              | | Current-Limiting Resistor
              | |
              +-+
               |
               |
           +---+---+
           |       |
           |  VOUT |
           |       |
           +---+---+
               |
               |
           +---+---+
           |       |
           |  GND  |
           |       |
           +-------+

The value of the current-limiting resistor can be calculated using Ohm’s law:

R = (VIN - VOUT) / ICHARGE

Where:
– R is the resistance of the current-limiting resistor
– VIN is the input voltage
– VOUT is the desired charging voltage
– ICHARGE is the desired charging current

Constant Voltage Charging Circuit with Overvoltage Protection

A constant voltage charging circuit with overvoltage protection ensures that the supercapacitor is charged to a specific voltage level and prevents overcharging.

           +-------+
           |       |
           |  VIN  |
           |       |
           +---+---+
               |
               |
           +---+---+
           |       |
           |  VREF |
           |       |
           +---+---+
               |
               |
           +---+---+
           |       |
           |  VOUT |
           |       |
           +---+---+
               |
               |
           +---+---+
           |       |
           |  GND  |
           |       |
           +-------+

The voltage reference (VREF) sets the desired charging voltage. When the supercapacitor voltage reaches VREF, the charging current is cut off, preventing overcharging.

Constant Power Charging Circuit

A constant power charging circuit maintains a constant power level during the charging process by adjusting the charging current and voltage.

           +-------+
           |       |
           |  VIN  |
           |       |
           +---+---+
               |
               |
           +---+---+
           |       |
           |  VREF |
           |       |
           +---+---+
               |
               |
           +---+---+
           |       |
           |  VOUT |
           |       |
           +---+---+
               |
               |
           +---+---+
           |       |
           |   IC  |
           |       |
           +---+---+
               |
               |
           +---+---+
           |       |
           |  GND  |
           |       |
           +-------+

The constant power charging IC monitors the supercapacitor voltage and adjusts the charging current to maintain a constant power level. This circuit requires a dedicated constant power charging IC, such as the LTC3350 or MAX17701.

Supercapacitor Charging FAQs

1. Q: Can I charge a supercapacitor with a constant voltage source?
   A: Yes, you can charge a supercapacitor with a constant voltage source, such as a voltage regulator. However, you need to ensure that the voltage level does not exceed the maximum rated voltage of the supercapacitor and incorporate overvoltage protection to prevent overcharging.

2. Q: How long does it take to charge a supercapacitor?
   A: The charging time of a supercapacitor depends on its capacitance and the charging current. The time constant (τ) of a supercapacitor is given by:
   τ = R × C
   Where:

3. τ is the time constant in seconds
4. R is the equivalent series resistance (ESR) of the supercapacitor in ohms
5. C is the capacitance of the supercapacitor in farads

The supercapacitor is considered fully charged after approximately 5 time constants (5τ).

1. Q: Can I connect supercapacitors in series to increase the voltage rating?
   A: Yes, you can connect supercapacitors in series to increase the overall voltage rating. However, it is crucial to ensure proper charge balancing among the individual supercapacitors to prevent overvoltage stress on any single cell.

2. Q: What is the maximum charging current for a supercapacitor?
   A: The maximum charging current for a supercapacitor depends on its specifications and the application requirements. Supercapacitors typically have a low equivalent series resistance (ESR), allowing for high charging currents. However, excessive charging currents can cause overheating and degrade the supercapacitor’s performance over time.

3. Q: How do I know when the supercapacitor is fully charged?
   A: You can determine when a supercapacitor is fully charged by monitoring its voltage. When the supercapacitor voltage reaches the desired charging voltage level and the charging current drops to a negligible value, the supercapacitor is considered fully charged. Incorporating voltage monitoring and charging status indicators in the charging circuit can provide visual feedback on the charging progress.

Conclusion

Supercapacitor charging circuits play a crucial role in harnessing the full potential of supercapacitors in various applications. By understanding the charging techniques, design considerations, and practical implementations, you can optimize the performance and longevity of supercapacitors in your projects.

This comprehensive guide has covered the fundamentals of supercapacitors, charging techniques, circuit design considerations, and practical charging circuits. It has also addressed common questions related to supercapacitor charging through the FAQ section.

When designing supercapacitor charging circuits, prioritize safety, efficiency, and reliability. Incorporate voltage and current limiting, charge balancing, and protection circuitry to ensure the supercapacitor operates within its safe operating limits. Consider the specific requirements of your application, such as charging time, power availability, and space constraints, when selecting the appropriate charging technique and circuit components.

With the knowledge gained from this guide, you are well-equipped to design and implement effective supercapacitor charging circuits for your projects. Remember to consult the datasheet and specifications of the specific supercapacitors you are using and adhere to the recommended operating conditions and safety guidelines.

Supercapacitors, with their high power density, fast charging capabilities, and long cycle life, offer exciting opportunities in energy storage and power management applications. By mastering the art of supercapacitor charging, you can unlock their full potential and push the boundaries of innovation in your projects.
