Understanding Propagation Delay

Propagation delay is a critical concept in the world of electronics and digital communication. It refers to the time taken for a signal to travel from one point to another within a circuit or transmission medium. This delay is an inherent property of any physical system and can significantly impact the performance and timing of digital circuits and communication systems.

Factors Influencing Propagation Delay

Several factors contribute to propagation delay:

1. Distance: The longer the distance a signal has to travel, the greater the propagation delay.
2. Medium: The physical medium through which the signal propagates, such as copper wire, optical fiber, or air, affects the speed of signal transmission.
3. Frequency: Higher frequency signals generally experience more propagation delay compared to lower frequency signals.
4. Capacitance and Inductance: The presence of capacitance and inductance in the transmission medium can introduce additional delays.

Importance of Propagation Delay

Understanding and calculating propagation delay is crucial in various applications:

1. Digital Circuit Design: Propagation delay determines the maximum operating frequency and timing constraints of digital circuits.
2. Synchronization: In systems where multiple components need to work in synchronization, propagation delays must be accounted for to ensure proper timing and avoid data corruption.
3. Signal Integrity: Propagation delay can affect signal integrity, leading to issues such as signal distortion, jitter, and intersymbol interference.
4. Communication Systems: In long-distance communication systems, propagation delay can introduce latency and impact the overall performance of the system.

Calculating Propagation Delay

To calculate propagation delay, you need to consider the distance traveled by the signal and the velocity of propagation in the medium. The basic formula for propagation delay is:

Propagation Delay = Distance / Velocity

Velocity of Propagation

The velocity of propagation depends on the medium through which the signal is traveling. In vacuum, the velocity of propagation is equal to the speed of light, which is approximately 3 × 10^8 meters per second. However, in practical scenarios, signals often travel through different media, such as copper wire or optical fiber, which have lower velocities of propagation.

Medium	Velocity of Propagation (m/s)
Vacuum	3 × 10^8
Air	3 × 10^8
Coaxial Cable	2 × 10^8
Twisted Pair	2 × 10^8
Optical Fiber	2 × 10^8

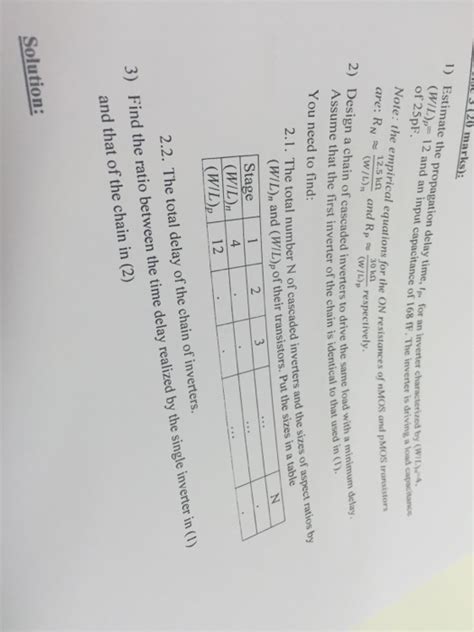

Propagation Delay in Digital Circuits

In digital circuits, propagation delay is often measured in terms of gate delays. Each logic gate (e.g., AND, OR, NOT) introduces a certain amount of delay as the signal passes through it. The total propagation delay in a digital circuit is the sum of the individual gate delays along the critical path.

To calculate the propagation delay in a digital circuit:

1. Identify the critical path, which is the longest path from input to output.
2. Determine the number and type of logic gates along the critical path.
3. Look up the propagation delay for each type of logic gate in the manufacturer’s datasheet.
4. Sum up the individual gate delays to obtain the total propagation delay.

Example: Propagation Delay in a Digital Circuit

Consider a digital circuit with the following critical path:

Input → AND gate → OR gate → NOT gate → Output

The propagation delays for each gate are:
– AND gate: 2 ns
– OR gate: 3 ns
– NOT gate: 1 ns

Total Propagation Delay = AND gate delay + OR gate delay + NOT gate delay
= 2 ns + 3 ns + 1 ns
= 6 ns

Therefore, the total propagation delay along the critical path is 6 nanoseconds.

Propagation Delay in Transmission Lines

When signals travel through transmission lines, such as coaxial cables or PCB traces, the propagation delay depends on the physical properties of the medium. The velocity of propagation in a transmission line is determined by its dielectric constant (ε_r) and the speed of light (c).

Velocity of Propagation = c / √ε_r

To calculate the propagation delay in a transmission line:

1. Determine the length of the transmission line (L).
2. Look up the dielectric constant (ε_r) of the transmission line material.
3. Calculate the velocity of propagation using the formula: c / √ε_r.
4. Use the propagation delay formula: Propagation Delay = L / Velocity of Propagation.

Example: Propagation Delay in a Coaxial Cable

Consider a coaxial cable with a length of 10 meters and a dielectric constant (ε_r) of 2.3.

Given:
– Length (L) = 10 m
– Dielectric Constant (ε_r) = 2.3
– Speed of Light (c) = 3 × 10^8 m/s

Step 1: Calculate the velocity of propagation.
Velocity of Propagation = c / √ε_r
= (3 × 10^8) / √2.3
≈ 1.98 × 10^8 m/s

Step 2: Calculate the propagation delay.
Propagation Delay = L / Velocity of Propagation
= 10 / (1.98 × 10^8)
≈ 50.5 ns

Therefore, the propagation delay in the 10-meter coaxial cable is approximately 50.5 nanoseconds.

Propagation Delay in Communication Systems

In communication systems, propagation delay plays a significant role in determining the overall latency and performance. The propagation delay in a communication system depends on the distance between the transmitter and receiver, as well as the propagation velocity in the transmission medium.

Propagation Delay in Wireless Communication

In wireless communication systems, such as cellular networks or satellite links, the propagation delay is primarily determined by the distance between the transmitter and receiver. The signal travels through the air at the speed of light, which is approximately 3 × 10^8 meters per second.

To calculate the propagation delay in a wireless communication system:

1. Determine the distance between the transmitter and receiver (D).
2. Use the propagation delay formula: Propagation Delay = D / c, where c is the speed of light.

Example: Propagation Delay in a Satellite Link

Consider a satellite communication system where the satellite is located at an altitude of 35,786 kilometers (geostationary orbit) and the ground station is directly below it.

Given:
– Distance (D) = 35,786 km = 35,786,000 m
– Speed of Light (c) = 3 × 10^8 m/s

Propagation Delay = D / c
= 35,786,000 / (3 × 10^8)
≈ 119.3 ms

Therefore, the propagation delay in the satellite link is approximately 119.3 milliseconds.

Propagation Delay in Optical Fiber Communication

In optical fiber communication systems, the propagation delay depends on the length of the fiber and the refractive index of the fiber material. The velocity of propagation in an optical fiber is determined by the speed of light in vacuum (c) divided by the refractive index (n) of the fiber material.

Velocity of Propagation = c / n

To calculate the propagation delay in an optical fiber:

1. Determine the length of the optical fiber (L).
2. Look up the refractive index (n) of the fiber material.
3. Calculate the velocity of propagation using the formula: c / n.
4. Use the propagation delay formula: Propagation Delay = L / Velocity of Propagation.

Example: Propagation Delay in an Optical Fiber

Consider an optical fiber link with a length of 100 kilometers and a refractive index of 1.5.

Given:
– Length (L) = 100 km = 100,000 m
– Refractive Index (n) = 1.5
– Speed of Light (c) = 3 × 10^8 m/s

Step 1: Calculate the velocity of propagation.
Velocity of Propagation = c / n
= (3 × 10^8) / 1.5
= 2 × 10^8 m/s

Step 2: Calculate the propagation delay.
Propagation Delay = L / Velocity of Propagation
= 100,000 / (2 × 10^8)
= 0.5 ms

Therefore, the propagation delay in the 100-kilometer optical fiber link is approximately 0.5 milliseconds.

Mitigating Propagation Delay

While propagation delay is an inherent property of physical systems, there are techniques to mitigate its impact:

1. Reducing Distance: Minimizing the distance between components or using shorter transmission lines can help reduce propagation delay.
2. Using Faster Media: Choosing media with higher propagation velocities, such as optical fibers or low-dielectric constant materials, can reduce propagation delay.
3. Pipelining: In digital circuits, pipelining techniques can be used to break long combinational paths into shorter segments, reducing the overall propagation delay.
4. Delay Compensation: In communication systems, delay compensation techniques, such as buffering or time synchronization, can be employed to mitigate the effects of propagation delay.
5. Parallelization: Implementing parallel processing or data transmission can help overcome the limitations imposed by propagation delay.

Frequently Asked Questions

1. What is propagation delay?
   Propagation delay refers to the time taken for a signal to travel from one point to another within a circuit or transmission medium.

2. What factors affect propagation delay?
   The main factors affecting propagation delay are distance, the physical medium (e.g., copper wire, optical fiber), frequency, capacitance, and inductance.

3. How do you calculate propagation delay?
   Propagation delay can be calculated using the formula: Propagation Delay = Distance / Velocity. The velocity depends on the propagation medium and is often a fraction of the speed of light.

4. Why is propagation delay important?
   Propagation delay is important because it determines the maximum operating frequency and timing constraints of digital circuits, affects signal integrity, and introduces latency in communication systems.

5. How can propagation delay be mitigated?
   Propagation delay can be mitigated by reducing distance, using faster media, implementing pipelining or delay compensation techniques, and employing parallelization.

Conclusion

Propagation delay is a crucial concept in electronics and digital communication. It represents the time taken for a signal to travel from one point to another and is influenced by factors such as distance, medium, frequency, capacitance, and inductance. Understanding and calculating propagation delay is essential for designing reliable and efficient digital circuits and communication systems.

By considering the propagation delay in various scenarios, such as digital circuits, transmission lines, wireless communication, and optical fiber links, engineers can optimize system performance, ensure proper timing, and mitigate the impact of propagation delay. Techniques like reducing distance, using faster media, pipelining, delay compensation, and parallelization can help minimize the effects of propagation delay.

As technology continues to advance and the demand for high-speed communication and computing grows, managing propagation delay remains a critical aspect of electronic system design. By utilizing propagation delay calculators and applying the principles discussed in this article, engineers and designers can effectively address the challenges posed by propagation delay and develop robust and efficient systems.
