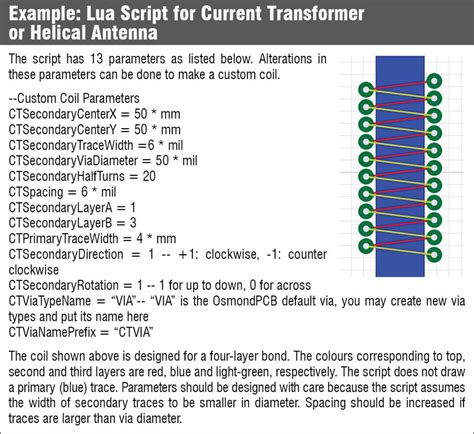

Osmond PCB is PCB layout software for Macintosh. Its publisher lists multilayer design, through-hole and surface-mount parts, design-rule checks, and Gerber and drill-file output. It is a design tool; using it does not establish a board fabricator’s capabilities. This guide focuses on the handoff from a layout project to a manufacturing package.
Check the software and project before committing
Review the current download information, licensing conditions and operating-system compatibility on the official Osmond PCB site. Confirm that the version you intend to use can open a copy of your project and export every file your fabricator requires. Do this with a small representative design before moving a production project into a new environment.
Keep a read-only copy of the original project. Record the application version, library revision, units and design-rule settings used for the release. A successful file open does not demonstrate that footprints, layer assignments and output settings remain correct. Recheck these items whenever the design changes tools or versions.
Set design rules from the intended manufacturing process
Obtain the fabricator’s proposed stackup and its approved limits for the particular construction. Distinguish a nominal drawing dimension from a minimum finished feature. Configure trace spacing, drill sizes, copper-to-edge clearance and other relevant rules from that agreement. A software default is a starting configuration, not evidence that a supplier can manufacture the board.
For a dense package, check the complete escape geometry: pad dimensions, the available routing channel, via lands and the reference plane. For an HDI construction, agree the allowed via spans separately. The design-rule checker can evaluate configured constraints; it cannot prove that an unspecified stackup or via process is qualified.
Review the exported manufacturing package
| Deliverable | Independent check |
|---|---|
| Copper and mask artwork | Open the exported files in a viewer and inspect layer polarity, alignment, clearances and openings. |
| Drill data | Check units, origin, tool sizes and the distinction between plated and non-plated holes. |
| Board outline | Confirm a single unambiguous profile, dimensions, slots and cutouts. |
| Fabrication drawing | State the stackup, material requirements, finished thickness, finish and controlled tolerances. |
| Assembly package | Provide the released BOM, placement data, polarity information and assembly notes when assembly is required. |
A practical release sequence
- Freeze a named design revision and resolve outstanding rule-check findings.
- Export to a new release folder so old and new files cannot be mixed.
- Review the exported package independently of the native layout display.
- Compare the fabrication drawing, BOM and assembly documentation against the same revision.
- Ask the fabricator to identify ambiguities before authorizing production.
For example, a drill file and copper artwork may look reasonable separately while using different origins. An overlay review catches the mismatch before quotation or CAM preparation. Record the correction in the released package rather than relying on an informal message describing how to shift one file.
Prepare the manufacturing inquiry
Include the board quantity, size, layer count, construction and assembly scope. Identify any special tolerances or unresolved design questions. Use the PCB layout handoff checklist and DFM review requirements to organize the request. Supplier-specific capability limits and lead times require written confirmation.
